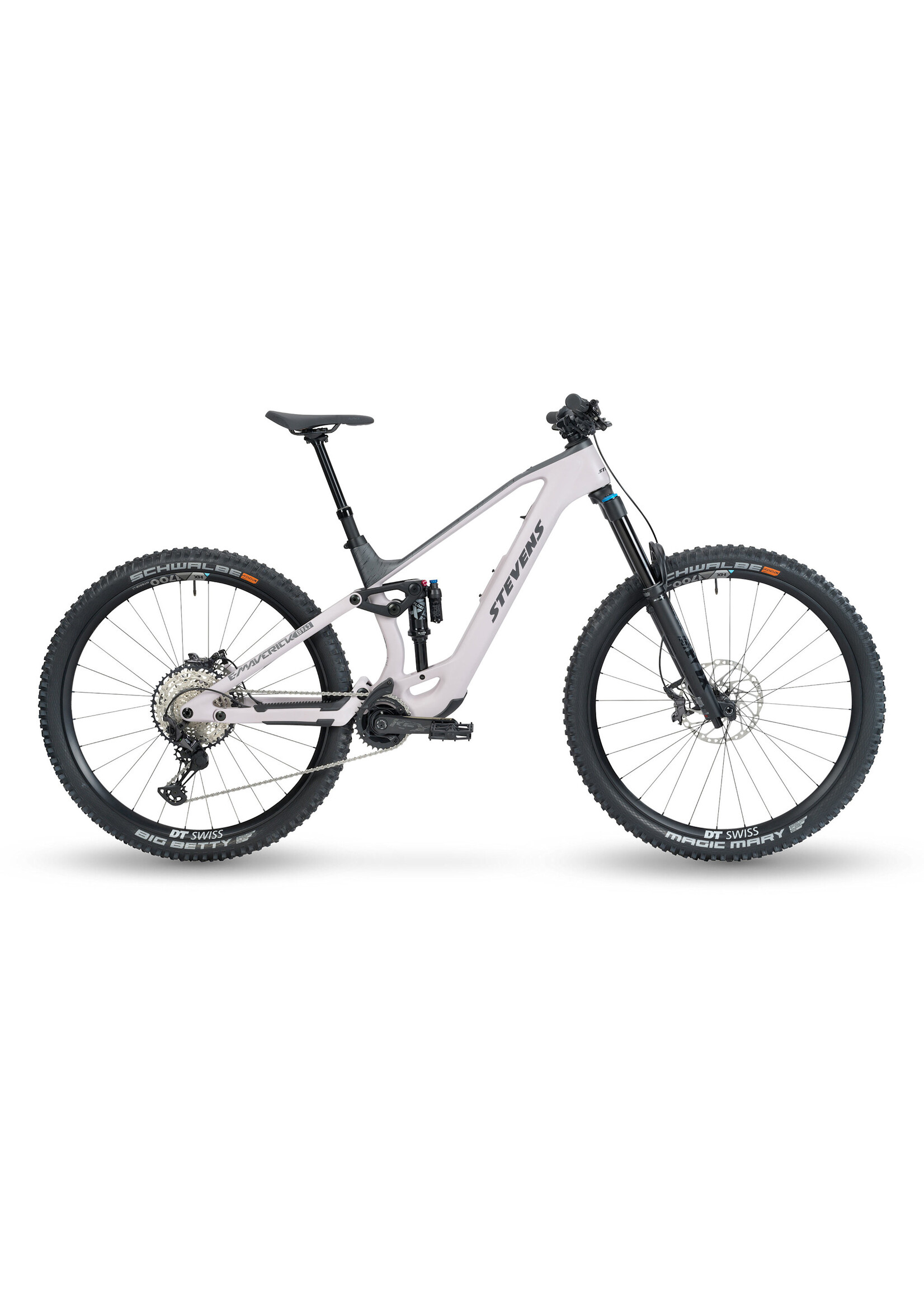

E-Maverick ED 9.4.3

Fast down the mountain – and relaxed back up again

Enduro mountain bikers want one thing above all: to descend the mountain quickly and with maximum control. To achieve this, we have equipped our E-Maverick ED 9.4.3 with fine components such as a 160 mm Fox suspension, Shimano Deore XT shifting and 29 inch wheels. Thanks to TQ's innovative HPR50 Light Assist Drive Unit, uphill is shuttled on its own axle. 50 Nm of torque and a natural support of your own pedalling power up to the highest support level turn an otherwise sweaty task into a real pleasure. The 360 Wh battery integrated into the down tube in combination with an optionally available 160 Wh range extender promises plenty of range. When it's time to go downhill again, the low overall weight and the agile, playful design of the bike allow perfect control and maximum riding fun.

Lively Light-Assist full-suspension E-MTB Enduro w/ high-tech carbon frame and 29" wheels
Ultra-light and compact TQ-HPR50 Light Assist drive unit for a low overall weight
Long-stroke 160 mm Fox suspension: 36 Float Performance Elite fork & Float X rear shock
Clean cockpit thanks to top tube-integrated display
Reliable 203 mm Shimano XT brakes & grippy Magic Mary/Big Betty 2.4" EVO SuperTrail tires

Illustration may differ. Specification subject to change.

Chassis

Frame

Carbon SL HMF

O.L.D.: 148 mm
Brake: Postmount-Disc 180
Tretlager: TQ
Zugverlegung: intern

Fork

Fox 36 Float Performance Elite eMTB+

Travel: 160 mm
Air suspension
Tapered Steerer 1 1/8" - 1 1/2"
O.L.D.: 110 mm
Brake: postmount disc 7"

Headset

Acros Blocklock Taper 1 1/8"-1 1/2"

Upper bearing cup: ZS56/28.6
Lower bearing cup: ZS56/40

Shock absorber

Fox Float X Performance Elite

Travel: 160 mm
Air suspension
Length: 205 mm
Shock travel: 62.5 mm
Mounting width: Trunnion Mount/25.0x8 mm

Brake front

Shimano Deore XT

BR-MT8120
Hydraulic disc brake
4 pistons

Brake rear

Shimano Deore XT

BR-MT8120
Hydraulic disc brake
4 pistons

Brake disc

Shimano SM-RT64

Rotor size: 203 mm
Center-Lock

Drivetrain

Crankset

FSA CK-9011/IS

Super light weight aluminum
BB type: ISIS
Crank bolt with QR-32

Motor sprocket

FSA TQ

32 T
Chainline: 55 mm

Derailleur rear

Shimano Deore XT Shadow+

RD-M8100-SGS
12-speed
Total capacity: 41 T

Chain: Shimano CN-M6100

Cassette

Shimano SLX

CS-M7100
12-speed
Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T

Pedals: MTB Flatpedal Reflex

E-System

Engine

TQ HPR50

Continuous rated power: 300 W
Max. torque: 50 Nm
Breakaway at 25 km/h (15.5 mph)

Battery

TQ HPR-BAT01

Kapazität: 360 Wh/6.8 Ah
Voltage: 50.4 V
Technology: Li-Ion

Charger: TQ 4A charger

Frame height		R1	R2	R3	R4	R5	Measuring mode
Seattube length	A1	630	644	654	666	676	nominal
Seattube length	A2	385	425	440	455	475	bottom bracket to top of seattube
Seattube length	A3	317	322	325	338	353	bottom bracket to top of top tube
Top tube length	B	534	554	580	603	628
Top tube horizontal	C	566	591	616	642	667	center headtube to center seatpost/seattube
Headtube angle (°)	D	64,5	64,5	64,6	65,1	65,1
Seattube angle (°)	E	76,6	76,3	76,1	76,1	75,8
Wheelbase	F	1195	1223	1253	1275	1301
Chainstay length	G	440	440	444	444	444
Headtube length	H	95	110	120	130	140
Bottom bracket drop	I	30	30	30	30	30	distance of bottom bracket to hub level
Bottom bracket height	K	343	343	343	343	343	distance to ground
Fork rake	L	44	44	44	44	44
Slope	M	299	308	315	313	307	top tube level distance front to rear
Wheel radius front	N1	379,5	379,5	379,5	379,5	379,5	tyred
Wheel radius rear	N2	378,5	378,5	378,5	378,5	378,5	tyred
Top tube height	O1	753	754	757	765	774	standover height minus bottom bracket height
Fork build height	P	574	574	574	574	574	incl. lower headset cups
Front wheel - bottom bracket	Q	757	784	810	832	859
Reach	R	429	450	471	495	517	center bottom bracket to center headtube, horizontal
Stack	S	615	629	638	650	659	center bottom bracket to center headtube, vertical
Stack/Reach (1:x)		1,43	1,4	1,35	1,31	1,27	ratio stack to reach
Sattelstützlänge		390	440	480	480	480
Seatpost diameter		30,9	30,9	30,9	30,9	30,9
Stem length		40	40	50	50	50	center-center
Stem angle (°)		0	0	0	0	0
Handlebar diameter		35	35	35	35	35
Assembled spacers		9,5 + 35 + 210
Handlebar width		800	800	800	800	800
Cranklength		165	165	165	165	165
