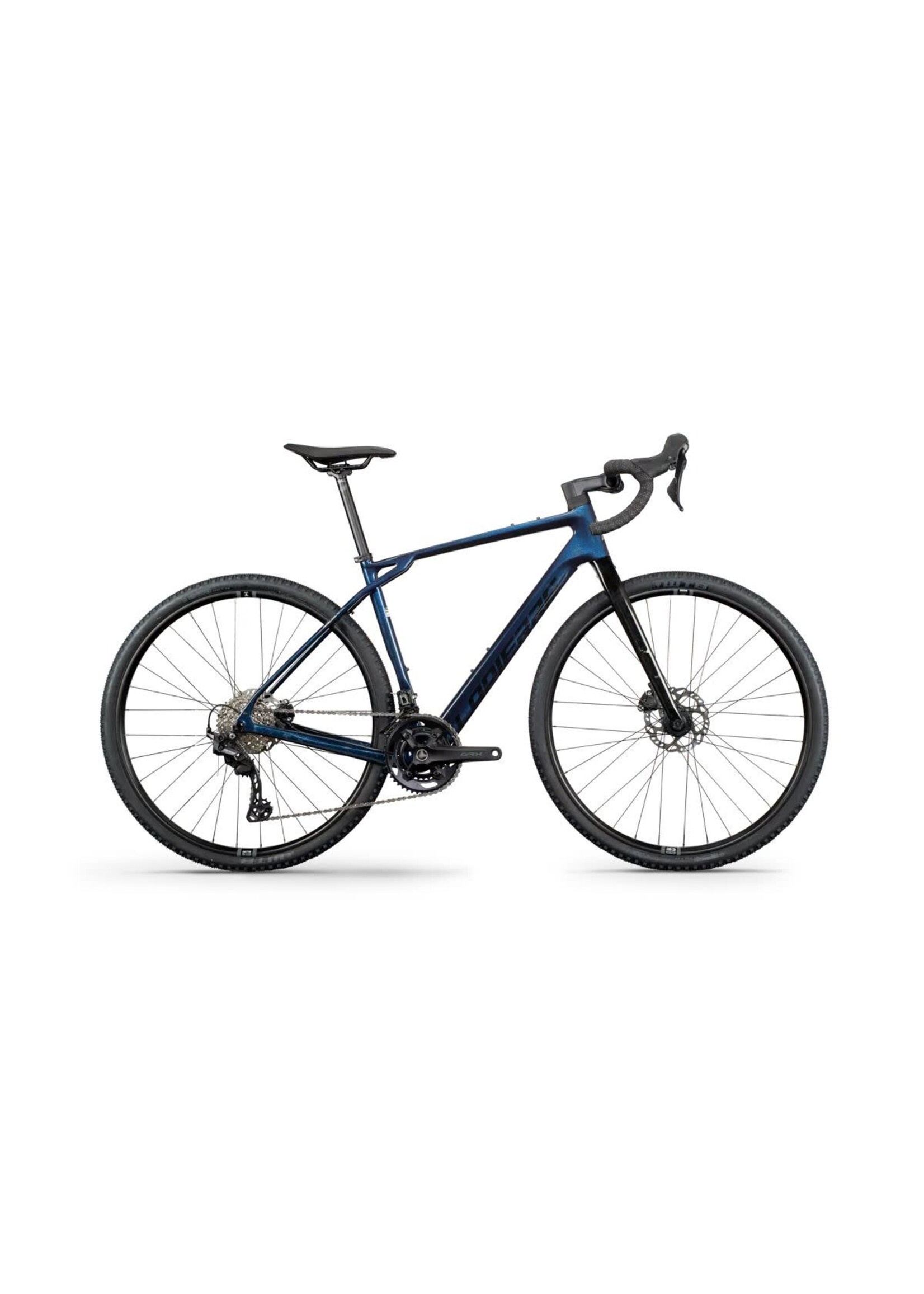

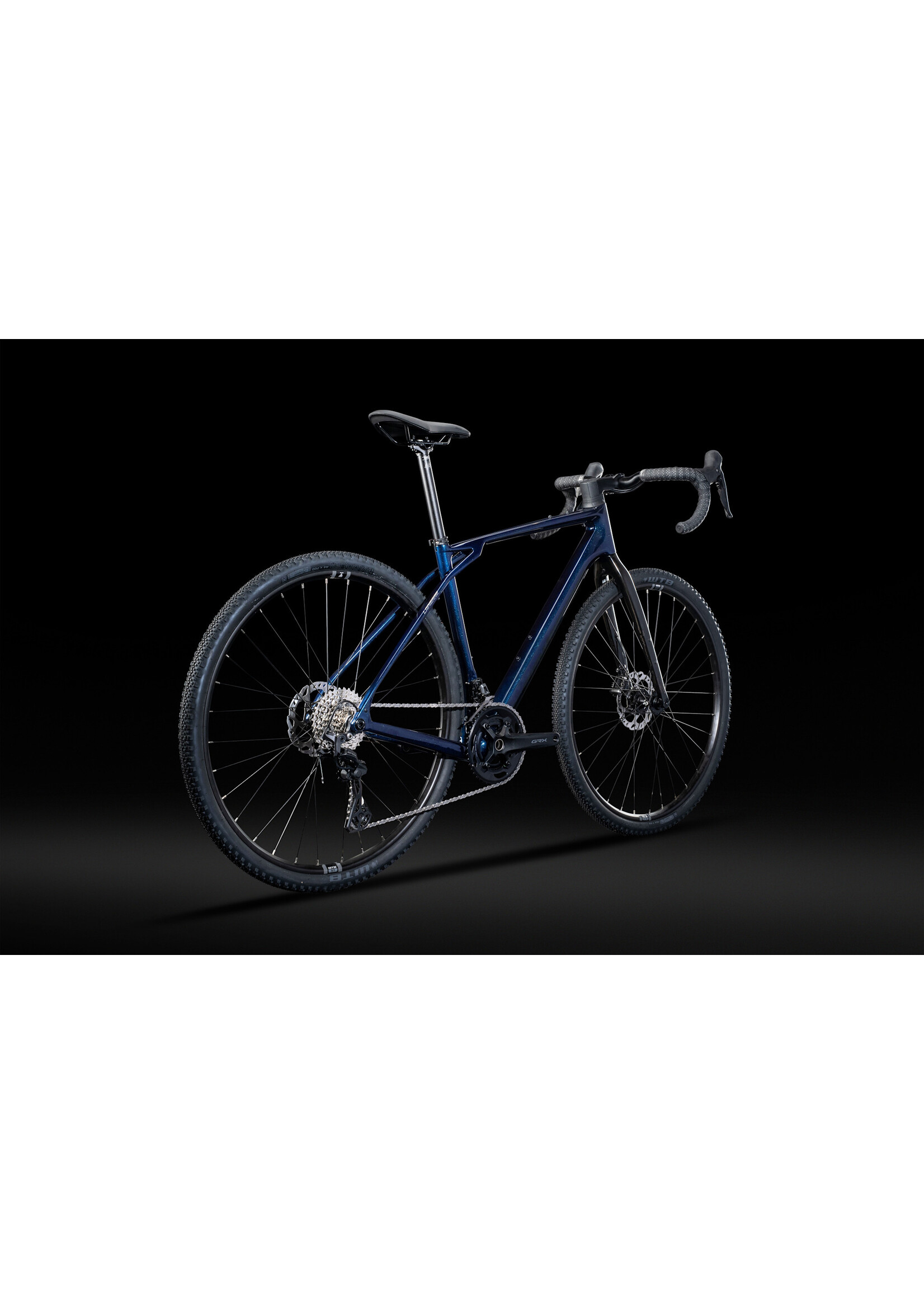

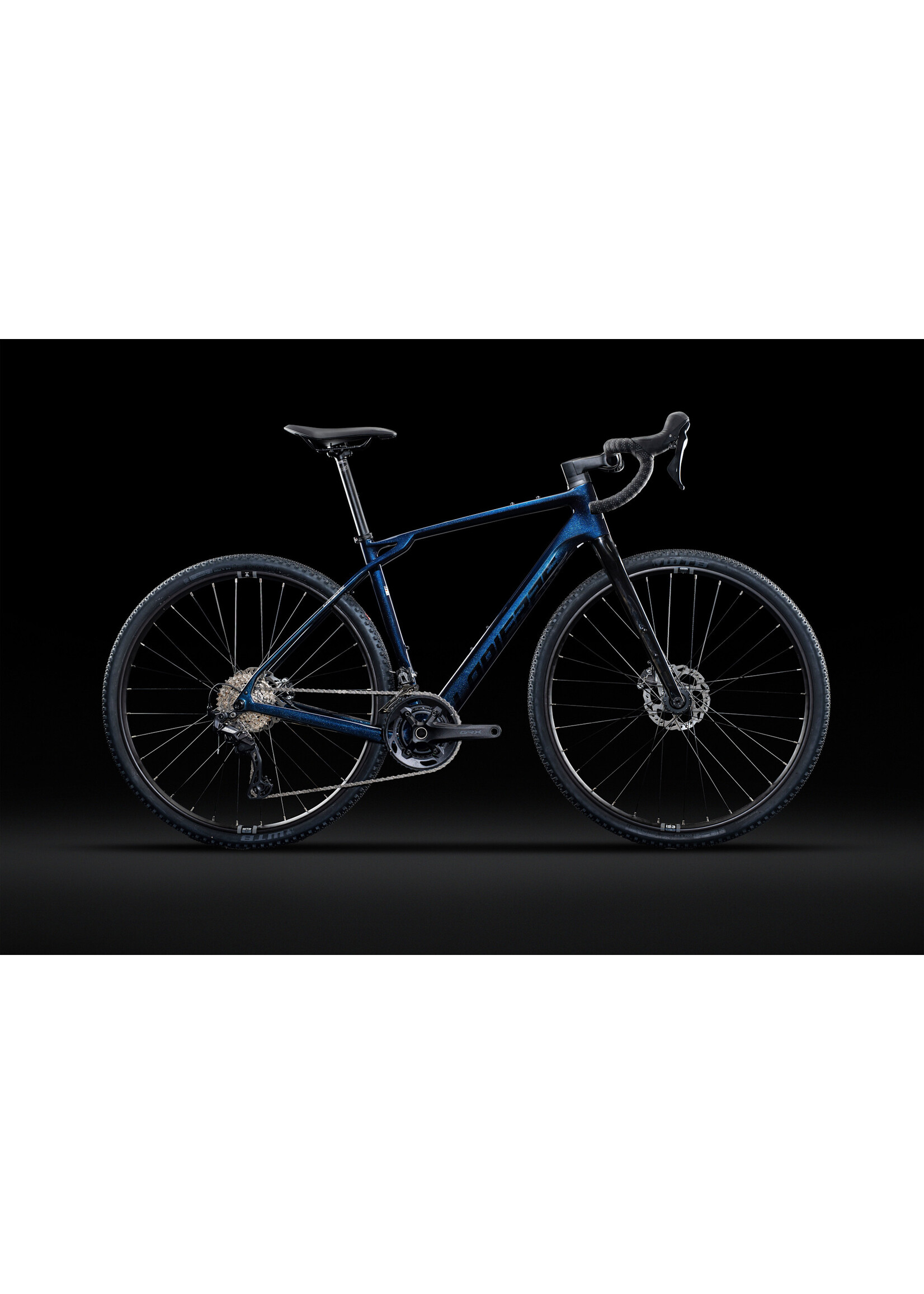

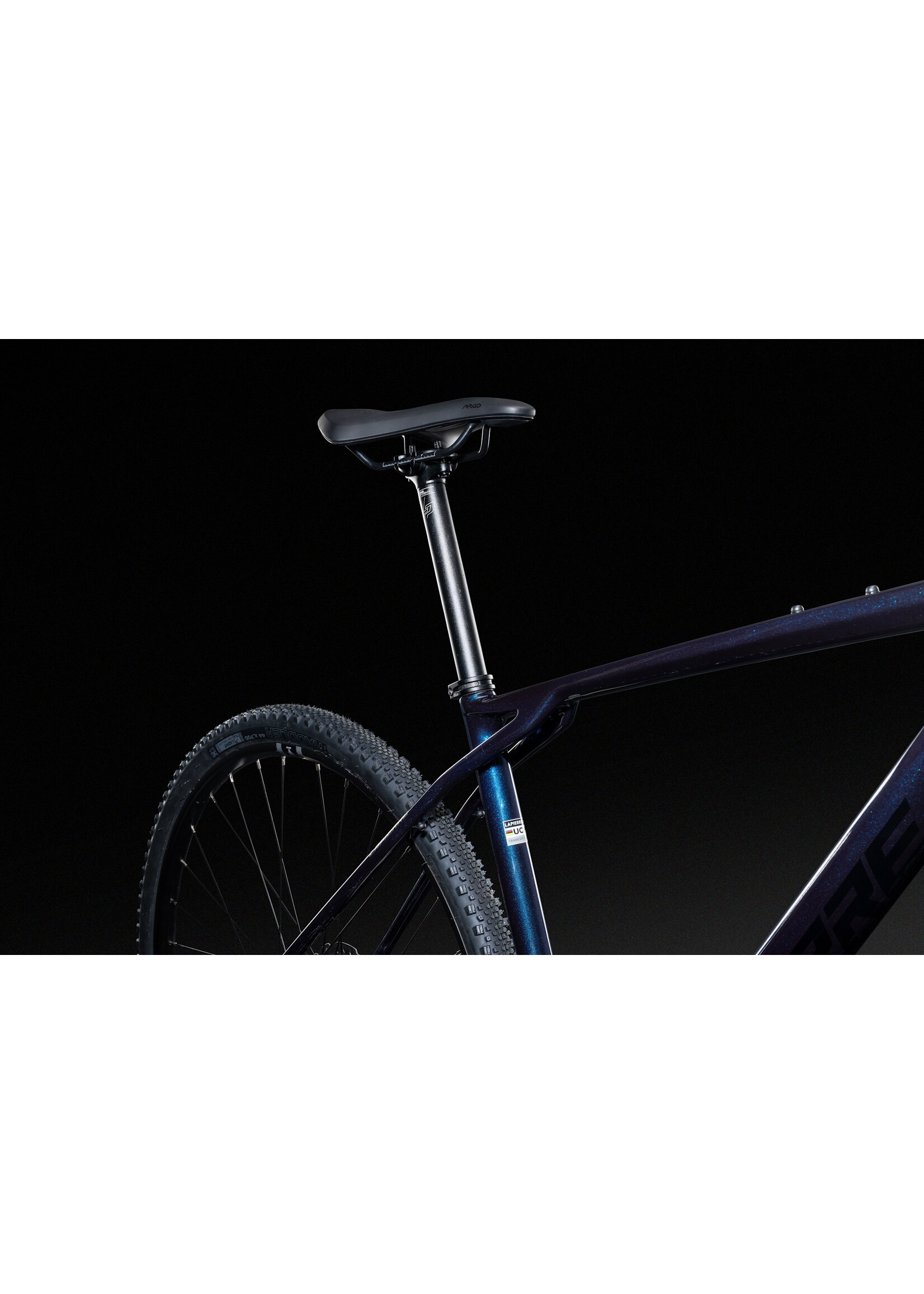

Gravel is dust that saturates the lungs, it's the dry clatter of stones against the derailleur, it's the silent groans of total effort. It's also a new vision of performance that resonates wonderfully with the new Crosshill CF. This carbon gravel bike is made for movie sets, Mad Max-style or Dune-style, whichever you prefer! It's also a weapon designed to accompany your greatest sporting conquests, whether on a long-distance road-trip, a personal challenge or a group bikepacking expedition. Everything about the Crosshill CF is in tune with your exploits, with the certainty of creating some of the finest memories of your life. This is the case for Romain, Jiri and Mathieu, whose crazy project to cross the Canary Islands on a Gravel bike sums up the extraordinary capabilities of this machine.
Bike Geometry
- Bottom bracket drop [mm]:
- Chain stay length [mm]: 430 mm
- Fork offset [mm]: 425 mm
- Fork total length [mm]: 45 mm
- Head tube angle:
- · 71 degrees
- · 71.5 degrees
- Head tube length [mm]:
- · 130 mm
- · 150 mm
- · 170 mm
- Reach [mm]:
- · 380 mm
- · 386 mm
- · 390 mm
- Stack [mm]:
- · 581 mm
- · 601 mm
- · 620 mm
- Seat tube angle:
- · 73.5 degrees
- · 73 degrees
- · 72.5 degrees
- Seat tube length [mm]:
- · 490 mm
- · 520 mm
- · 550 mm
- Top tube length [mm]:
- · 552 mm
- · 570 mm
- · 585 mm
- Wheelbase [mm]:
- · 1027 mm
- · 1036 mm
- · 1045 mm
Brake system
- Brake Front Brand: Shimano
- Brake Front Kind: GRX RX820, 160 mm
- Brake Front Type: Hydraulic Disc brake
- Brake Rear Brand: Shimano
- Brake Rear Kind: GRX RX820, 160 mm
- Brake Rear Mount: Flat Mount
- Brake Rear Type: Hydraulic Disc brake

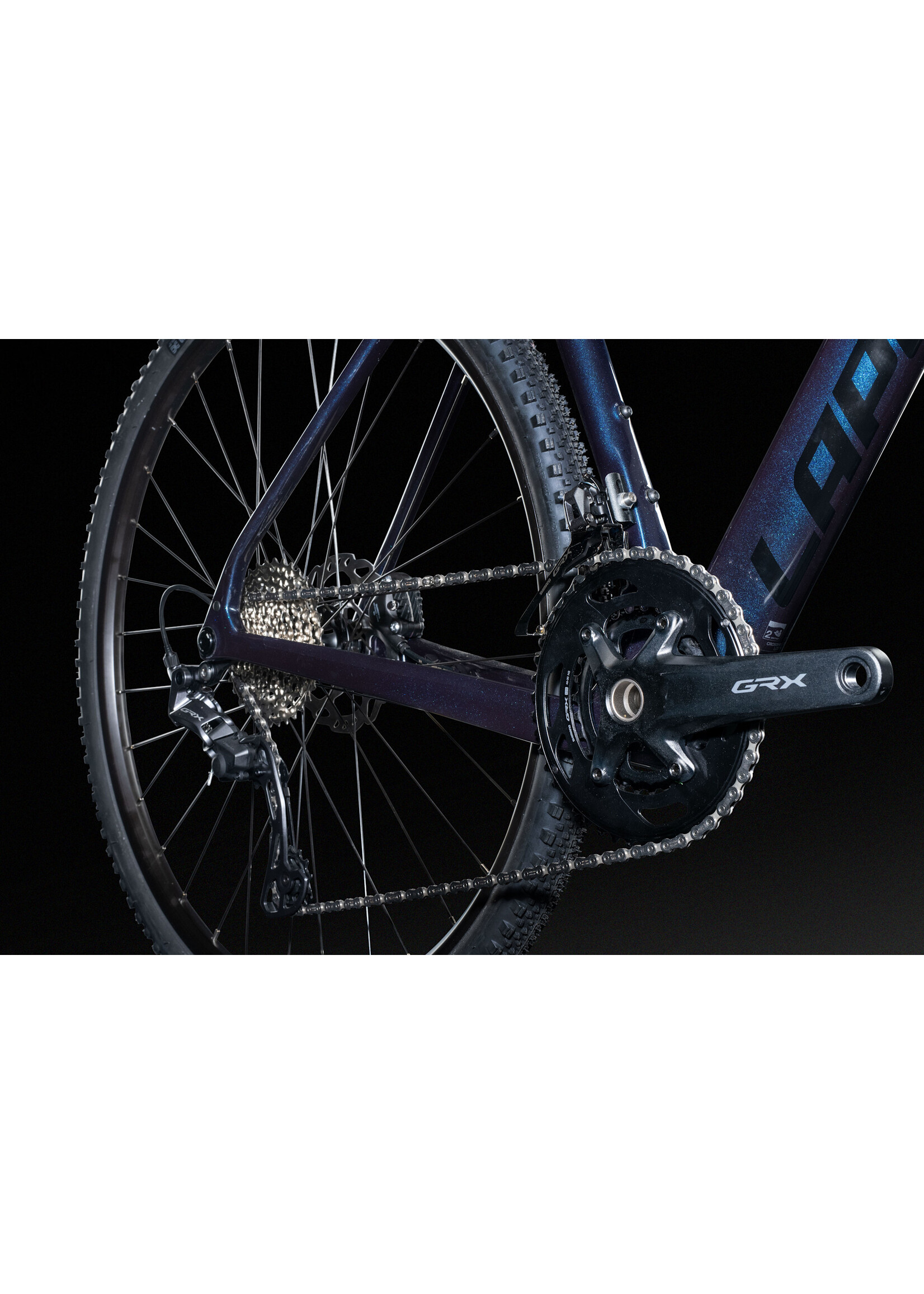

Drivetrain
- Bottom Bracket Brand: Shimano
- Bottom Bracket Kind: BB72-41B
- Bottom Bracket Type: PressFit
- Cassette Brand: Shimano
- Cassette Kind: CS-HG710-12, HG
- Cassette Teeth: 11-36T
- Cassette Type: Cassette
- Chain Brand: Shimano
- Chain Kind: CN-M7100 12s
- Chain Type: Chain
- Crankset Brand: Shimano
- Crankset Kind: GRX FC-RX610
- Crankset Teeth: 46-30T
- Crankset Type: double
- Derailleur Front Brand: Shimano
- Derailleur Front Kind: GRX RX820 Brazed-On
- Derailleur Rear Brand: Shimano
- Derailleur Rear Kind: GRX RX820, 12s Shadow +
- Gear Brand: Shimano
- Gear Type: Derailleur
- Number Of Gears: 24
- Pedal Brand: VP
- Pedal Kind:
- · 337 Clips&Strap
- · 338 Clips&Strap
- · 339 Clips&Strap
- Shifter Left Brand: Shimano
- Shifter Left Kind: GRX ST-RX610
- Shifter Left Type: Shift-brake lever
- Shifter Right Brand: Shimano
- Shifter Right Kind: GRX ST-RX610
- Shifter Right Type: Shift-brake lever
Frame and more
- Framesize:
- Framesize Convection:
- Max loadable weight (KG): 110 kg

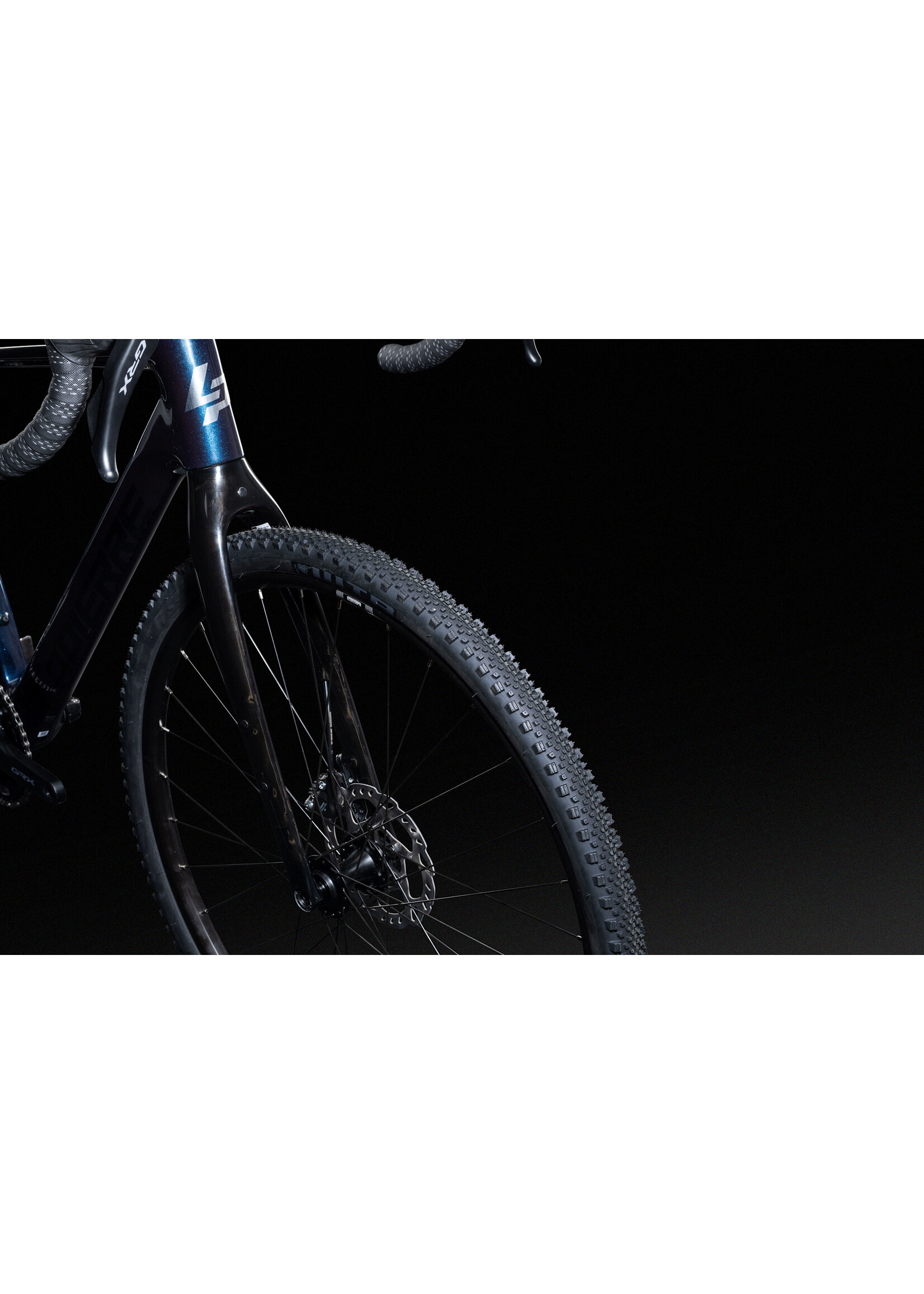

- Front Fork Brand: Lapierre
- Front Fork Kind: Carbon UD SL
- Front Fork Type: Non Suspension
Handlebar and Saddle
- Handgrip Brand: Lapierre

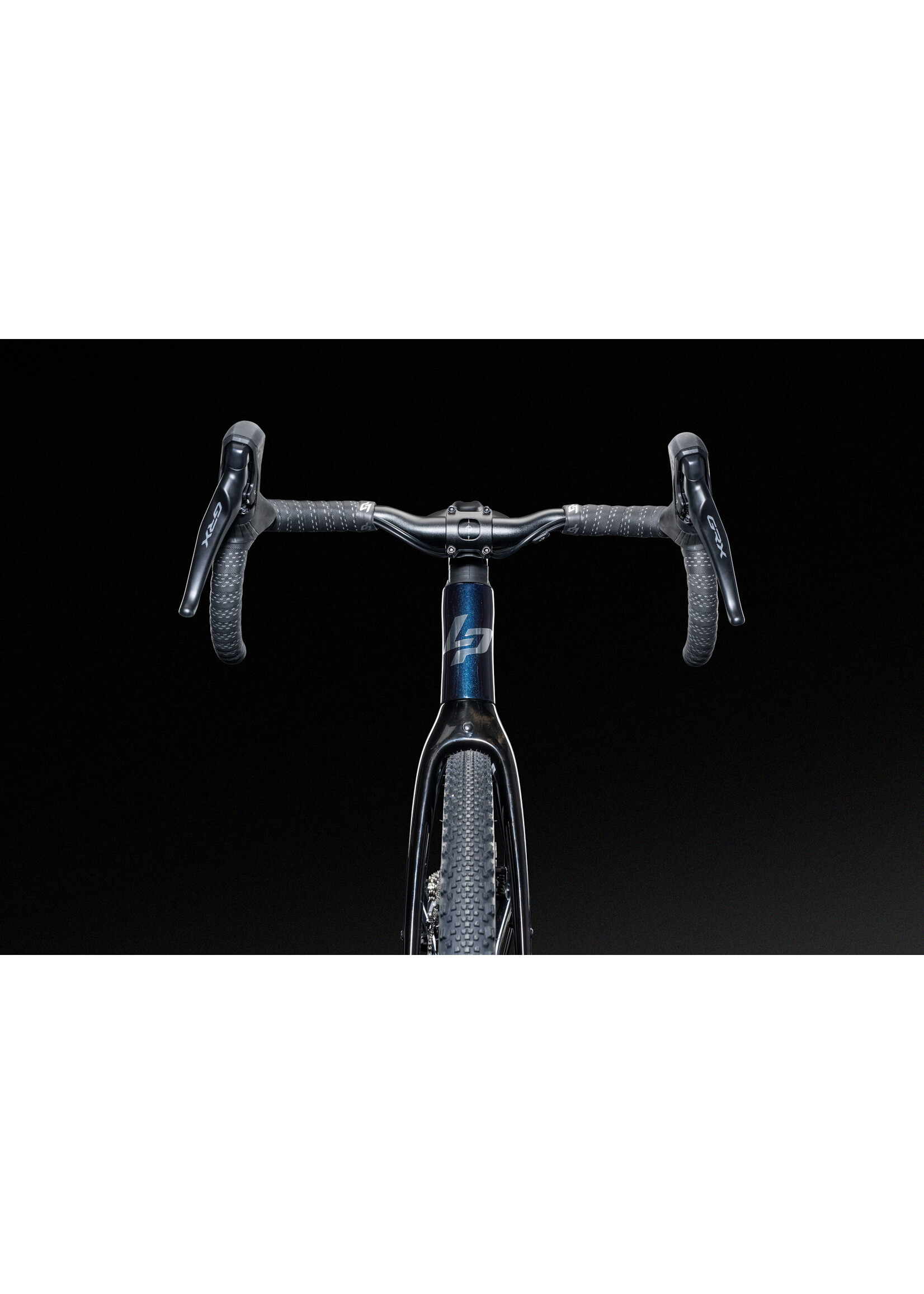

- Handlebar Brand: Lapierre
- Handlebar Kind: Alloy gravel bar, Drop: 114 mm, Reach: 70 mm, Flare: 12°
- Handlebar Type: Drop bar

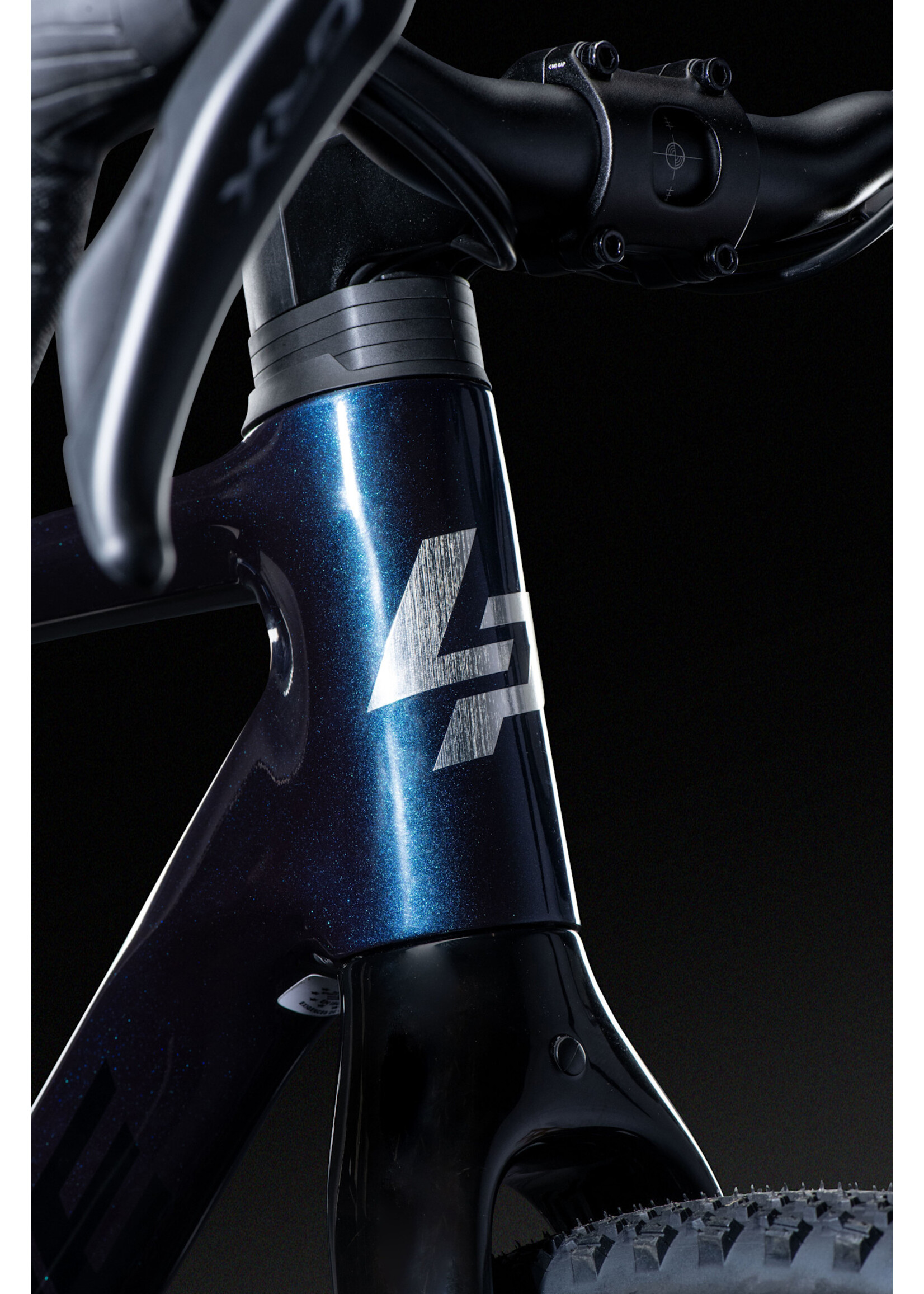

- Headset Brand: Acros
- Headset Kind: Integrated
- Headset Type: Integrated
- Saddle Brand: Fizik
- Saddle Kind: Terra Argo X7 150mm

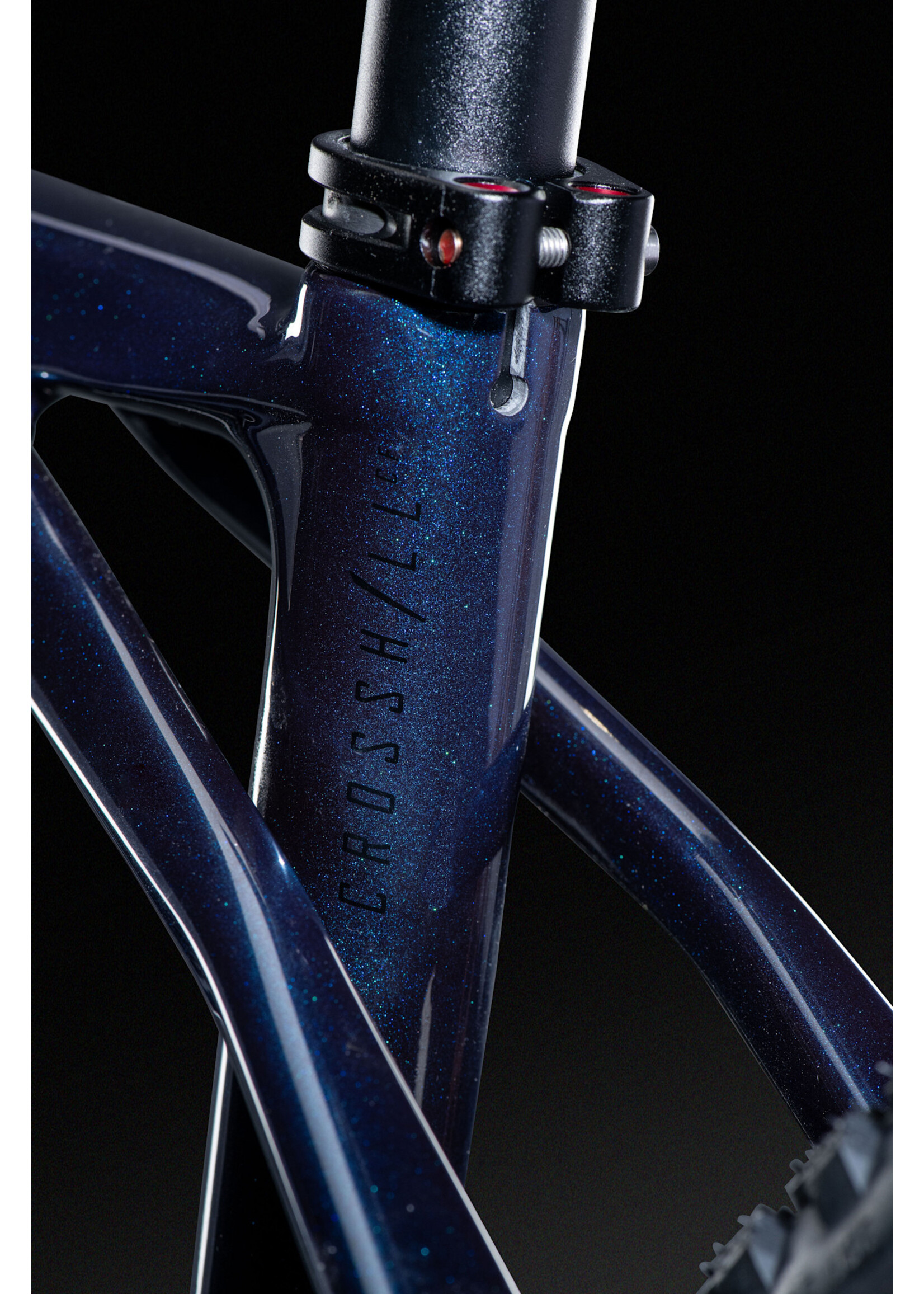

- Seatpost Brand: Lapierre
- Seatpost Kind: Alloy, Ø: 27.2 mm, L: 350 mm
- Seatpost Type: Non Suspension
- Stem Brand: Lapierre
- Stem Kind:
- · Alloy, internal routing, Ø: 31.8 mm, L: 90 mm
- · Alloy, internal routing, Ø: 31.8 mm, L: 100 mm
- · Alloy, internal routing, Ø: 31.8 mm, L: 110 mm
Wheels and wheel components
- Tyre Brand: WTB
- Tyre Kind: Raddler TCS LIGHT 60TPI
- Tyre Rear Brand: WTB
- Tyre Rear Kind: Raddler TCS LIGHT 60TPI
- Tyre Size Etrto: 44-622
- Wheelset Brand: Lapierre
- Wheelset Kind: Gravel 25 mm Alloy 700c Shimano driver, Centerlock
- Wheelset Material: Aluminium
- Wheelset Rear Brand: Lapierre
- Wheelset Rear Kind: Gravel 25 mm Alloy 700c Shimano driver, Centerlock
- Wheel Size Front: 28
- Wheel Size Rear: 28
