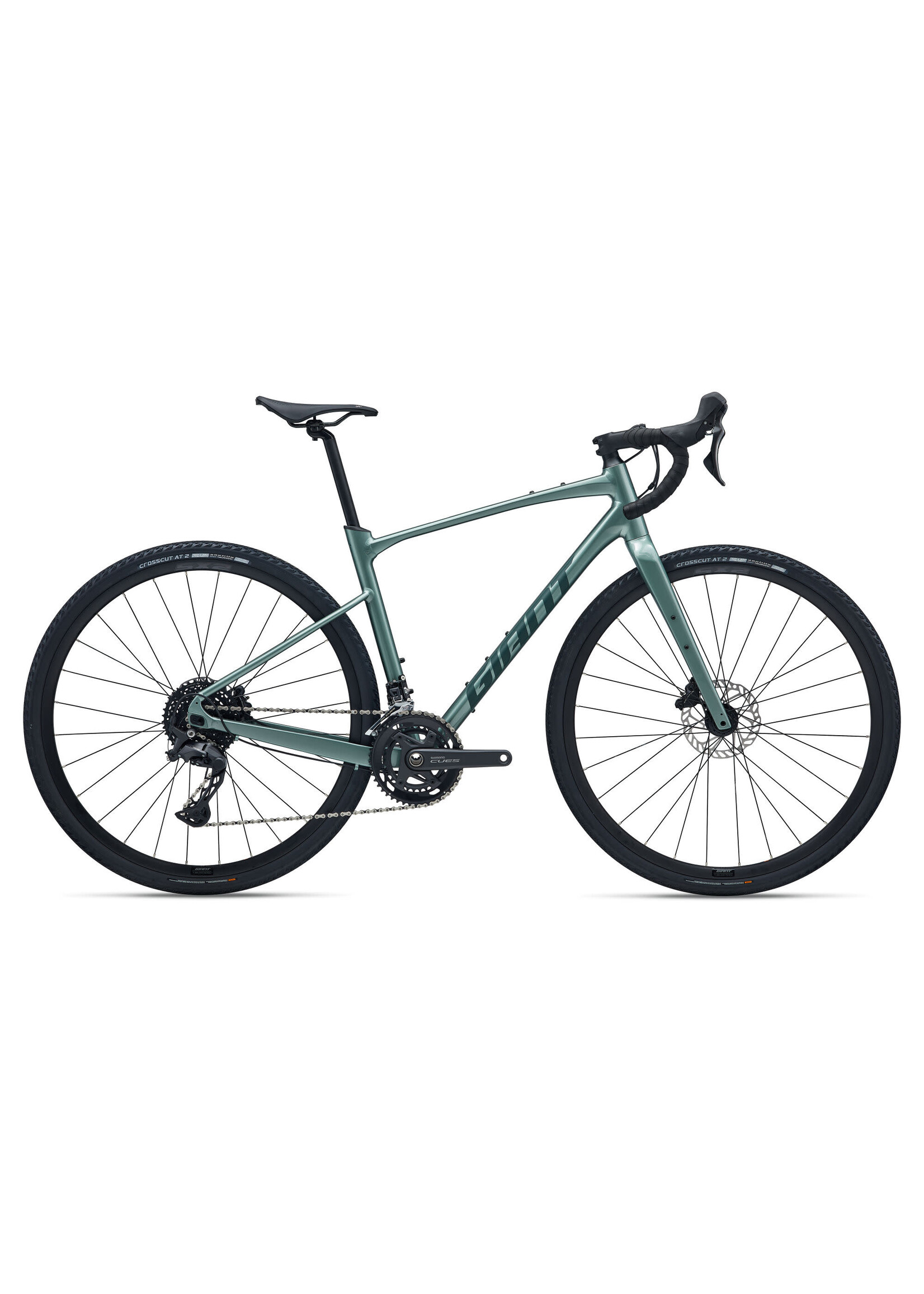

Giant Revolt 1

€1.699,00

Incl. tax

In stock

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Key Performance Factors

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications

Sizes

XS, S, M, M/L, L, XL
Colours

Alpine Green
Frame

ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem

Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost

Giant D-Fuse, alloy, 14mm offset
Saddle

Giant Grit
Shifters

Shimano CUES U6030, 2x10
Front Derailleur

Shimano CUES U6030
Rear Derailleur

Shimano CUES U6020
Brakes

Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers

Shimano CUES U6030 hydraulic
Cassette

Shimano CS-LG300, 11x39
Chain

KMC X11
Crankset

Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket

Shimano, threaded
Rims

Giant S-X2, alloy
Hubs

Giant alloy, 12mm thru-axle
Spokes

stainless
Tyres

CrossCut GRIP 1; 700x45c
Extras

tubeless prepared
Max Tire Clearance

53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.
