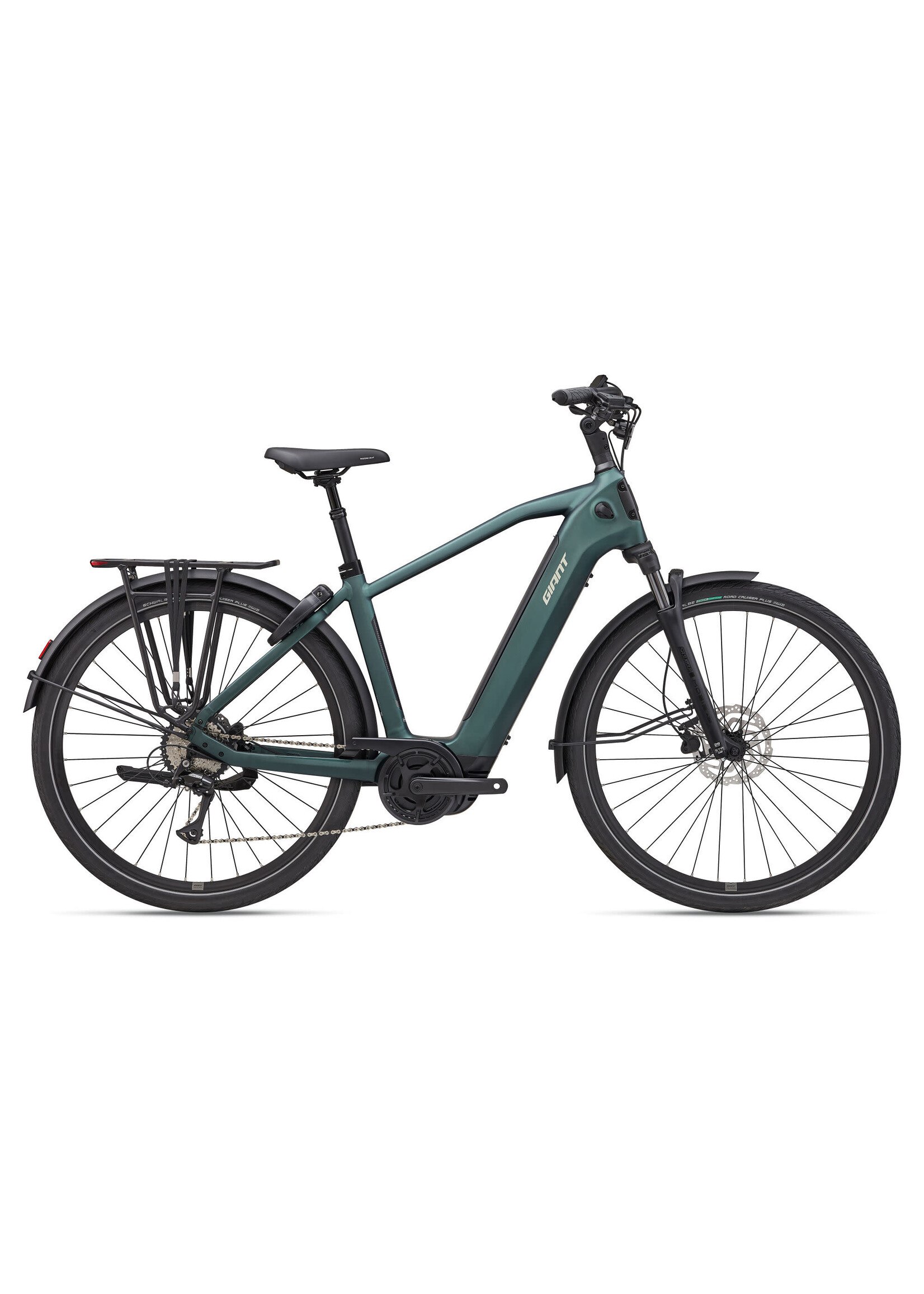

Giant NewTour E+ 3 DD

COMFORT IN MOTION

Ease and stability define the ride experience. Upright geometry combined with a comfort-focused setup creates a relaxed, confidence-inspiring feel, while suspension in both the fork and seatpost helps smooth rough pavement and shared paths. This balanced approach keeps the ride composed as conditions change, encouraging longer outings without constant adjustment.

SECURE, CONNECTED RIDING

Peace of mind is built into every ride. Integrated E-bike security features, including E-lock, disable motor assistance and trigger an alarm if the bike is moved while locked, while Apple Find My integration enables location tracking and monitoring. Together, these systems help riders feel confident leaving the bike and ready to ride again.

SEAMLESS DESIGN & INTEGRATION

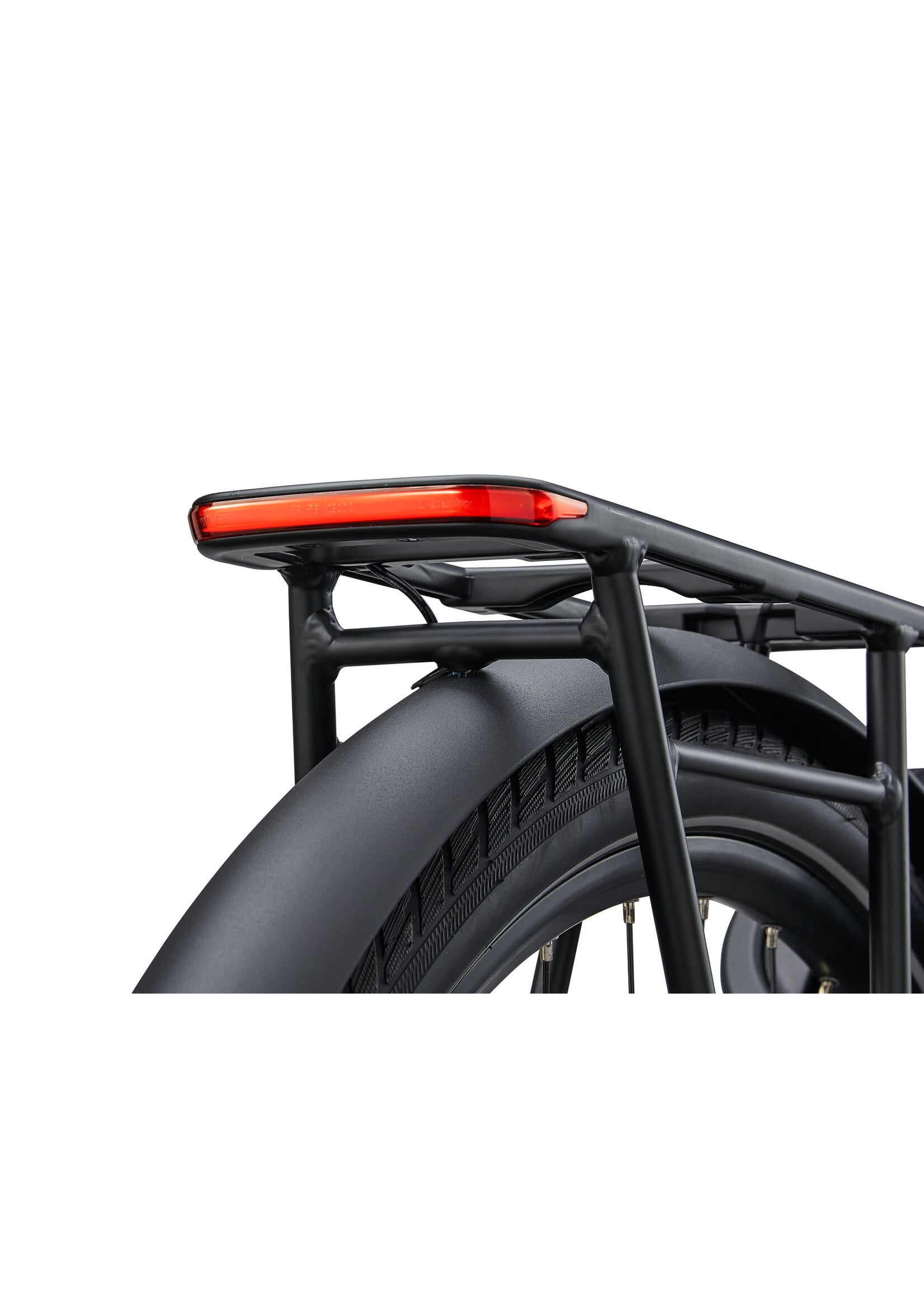

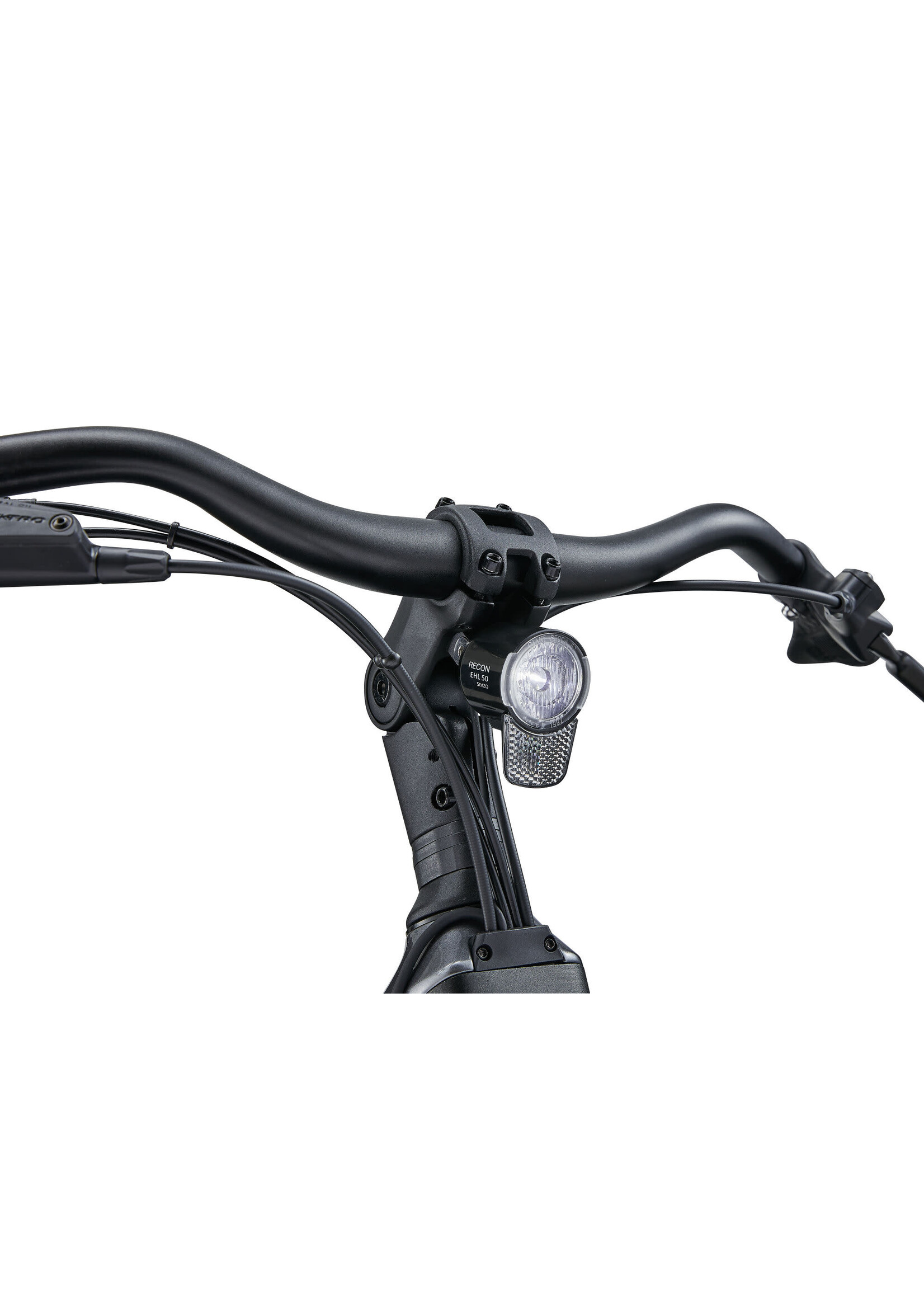

Every detail is designed to feel intentional and refined. Clean cable routing through the head tube badge, integrated lighting, and compatibility with practical accessories create a cohesive design that balances everyday usability with a premium appearance—supporting both the ride experience and the bike’s visual identity.

Specifications

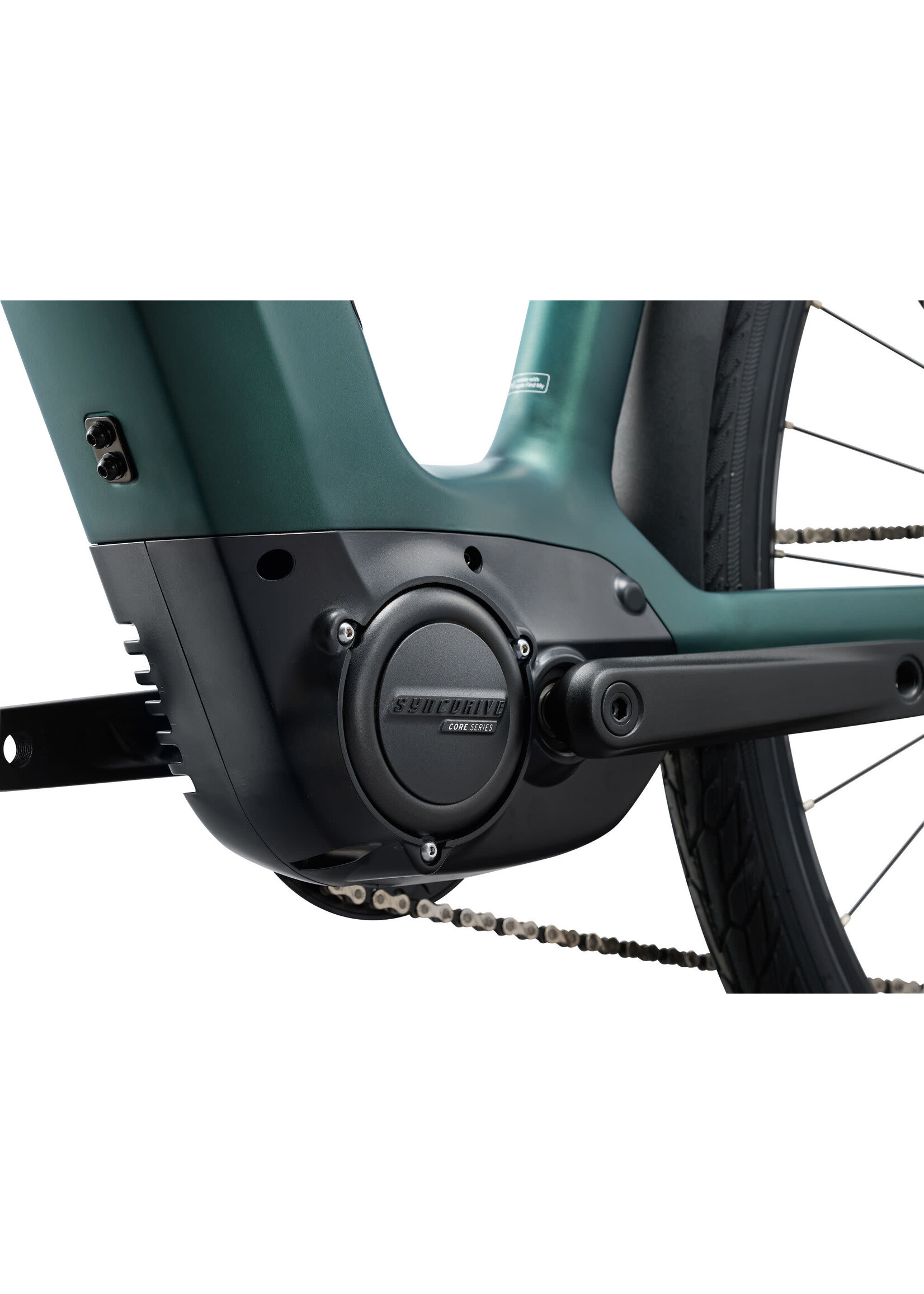

Motor

Giant SyncDrive Core2 55Nm, PedalPlus 6-Sensor technology

Battery

Giant EnergyPak 500Wh

Charger

Giant EnergyPak 4A smart charger

Controller

Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels

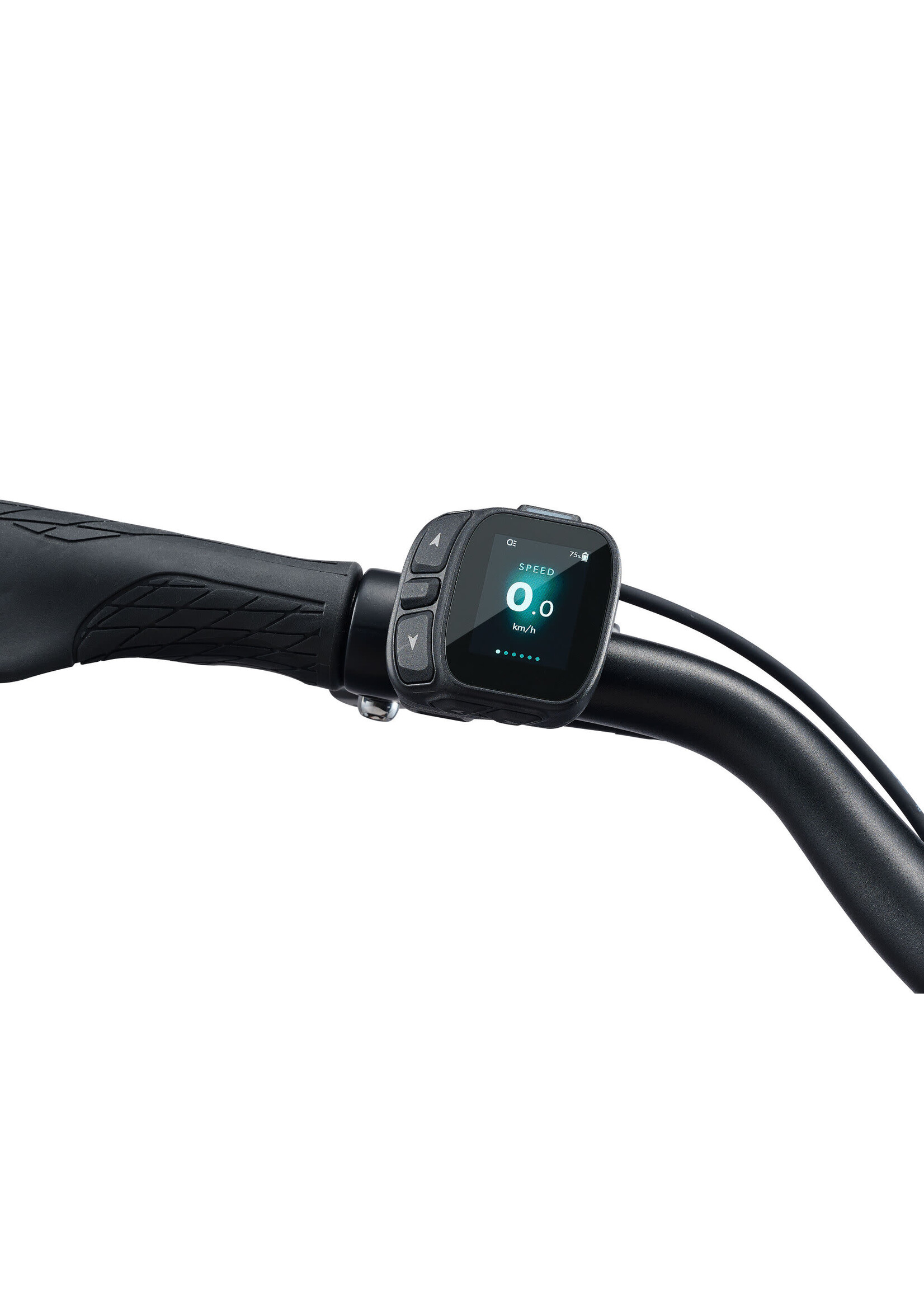

Display

Giant RideControl Dash 2, full color LCD display

Sizes

M, L, XL

Frame

ALUXX aluminium Battery Integrated

Fork

SR Suntour Mobie 32 63mm travel

Handlebar

Aluminium, 30° back sweep, 31.8x660 mm

Stem

Aluminum angle adjustable stem

Seatpost

Suspension 30.9x300mm

Saddle

Selle Royal Essenza Plus

Pedals

Anti-slip Platform

Shifters

Shimano Altus

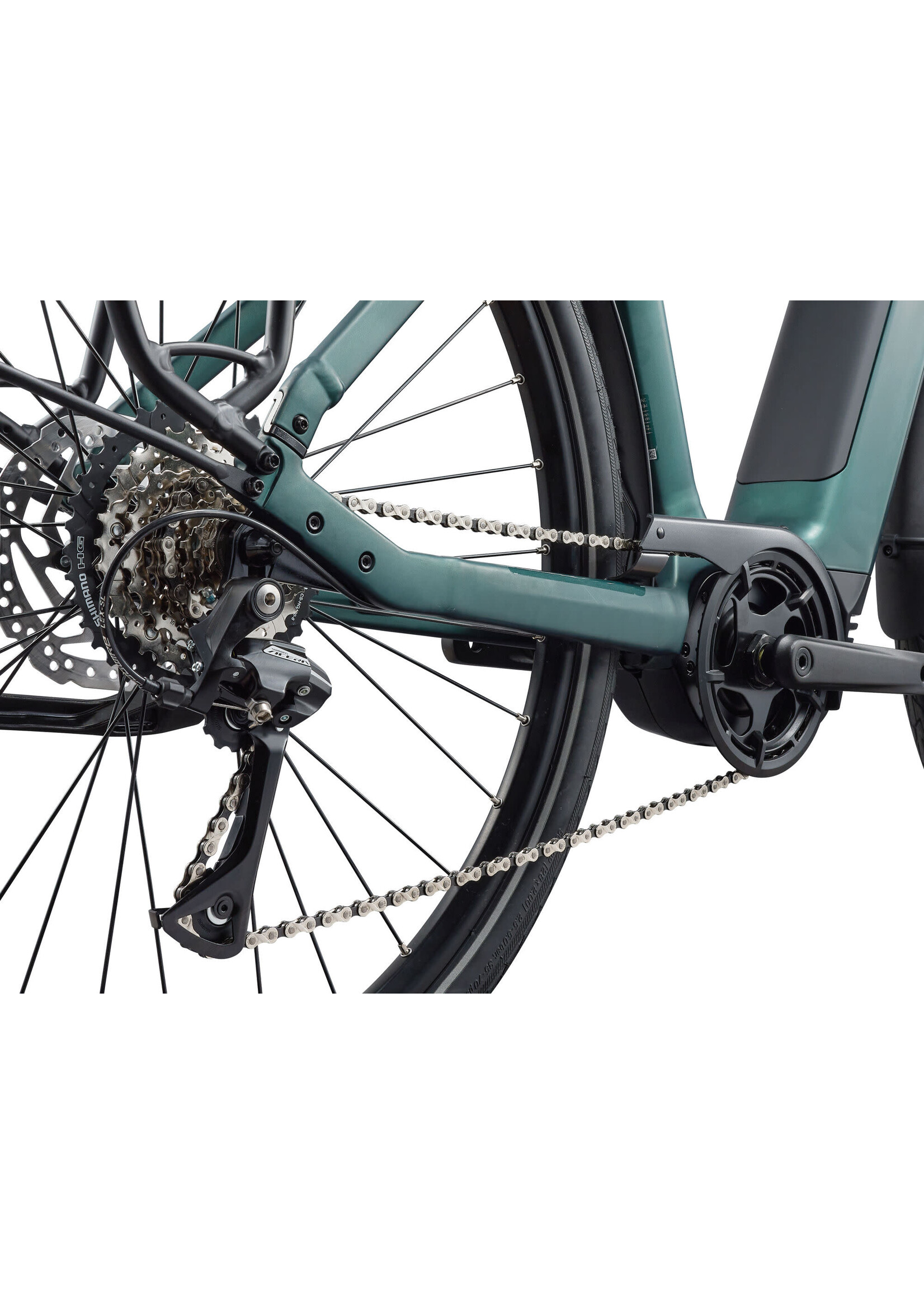

Rear Derailleur

Shimano Acera, 8-speed

Brakes

Tektro HD-M281, hydraulic disc, 180mm [F] 160mm [R]

Brake Levers

Tektro HD-M281

Cassette

Shimano 11-40T, 8-speed

Chain

KMC e8 Sport, NP/BK, e-bike optimized

Crankset

38T, Forged alumium crank arms

Rims

Giant Double Wall Aluminum 622x21

Hubs

Shimano HB-QC300 [F] Shimano FH-QC300-HM [R]

Spokes

Stainless 14G(2.0mm) [F] Stainless 13-14G(2.3-2.0mm) butted [R]

Tyres

Schwalbe Road Cruiser Plus, 622x50 Wire Bead w/ reflective stripe

Extras

KSA18 direct mount kickstand

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S

160 cm 175 cm
M

167 cm 182 cm
L

174 cm 189 cm
XL

181 cm 196 cm

		S	M	L	XL
A	Seat Tube Length (MM)	450	500	550	600
B	Seat Tube Angle	75.7°	74.2°	72.8°	71.2°
C	Top Tube Length (MM)	590	605	620	635
D	Head Tube Length (MM)	170	170	170	170
E	Head Tube Angle	69.0°	69.0°	69.0°	69.0°
F	Fork Rake (MM)	44	44	44	44
G	Trail (MM)	95.7	95.7	95.7	95.7
H	Wheelbase (MM)	1155	1155	1155	1155
I	Chain Stay Length (MM)	482	482	482	482
J	Bottom Bracket Drop (MM)	75	75	75	75
K	Stack (MM)	672	672	672	672
L	Reach (MM)	405	405	405	405
N	Handlebar Width (MM)	660	660	660	660
O	Stem Length (MM)	70	70	90	110
P	Crank Length (MM)	170	170	170	170
Q	Wheel Size	622X50	622x50	622X50	622X50
