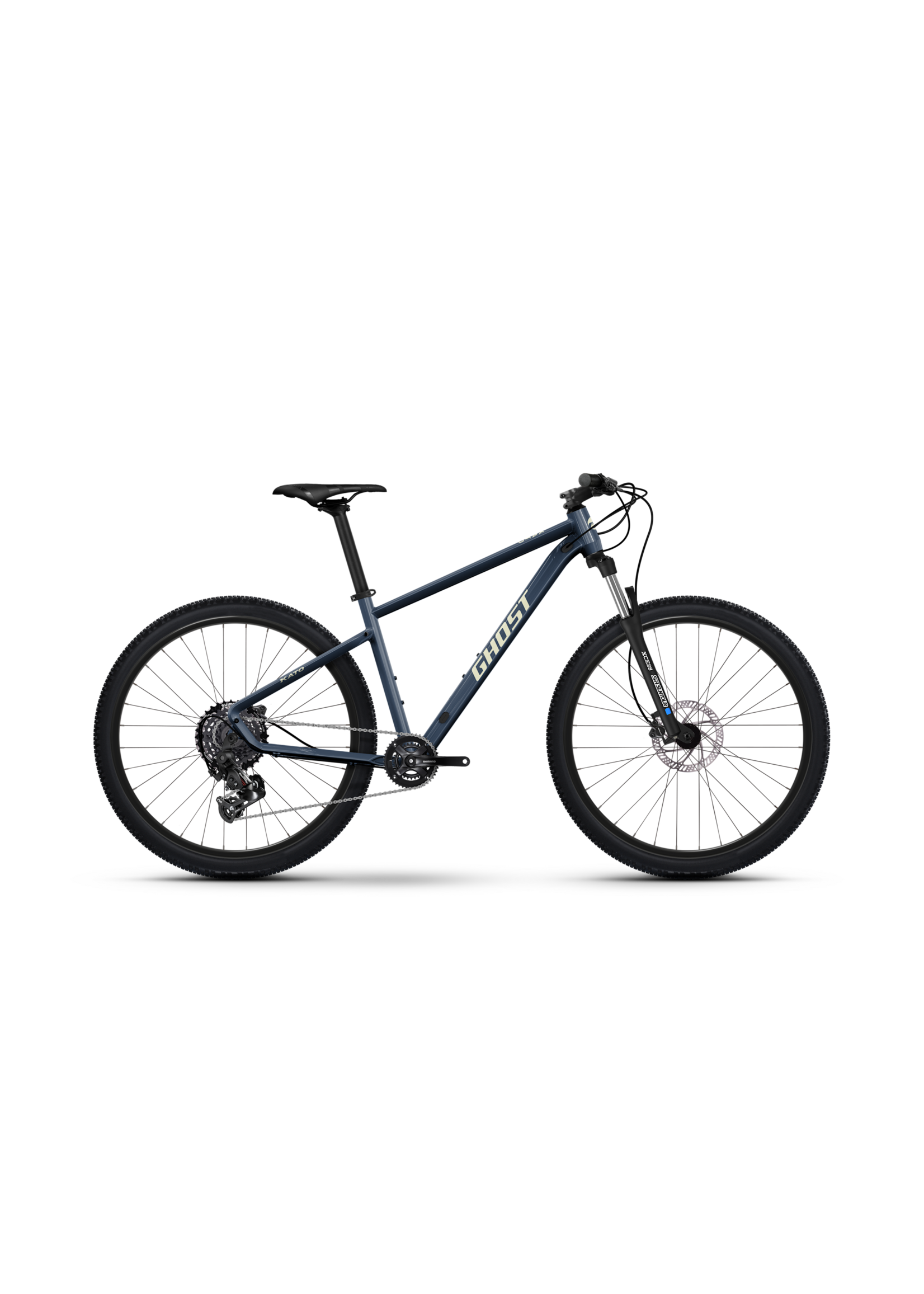

The Ghost Kato is your all-terrain adventure bike - lightweight, durable, and built for control. With responsive handling, powerful disc brakes, and smooth suspension, its made to tackle climbs, trails, and descents with confidence.
- Alloy Frame
- Suntour XCE28 Fork
- Shimano Tourney 21 Speed Gears
- Tektro HD M280 Hydraulic Disc Brakes
- XLC Wheelset
-
Bike Geometry
- Bottom bracket drop [mm]: 60 mm
- Chain stay length [mm]: 450 mm
- Fork offset [mm]: 300 mm
- Head tube angle: 68 degrees
- Head tube length [mm]: 115 mm
- Reach [mm]: 409 mm
- Stack [mm]: 622 mm
- Stand over height [mm]: 735 mm
- Seat tube angle: 73.5 degrees
- Seat tube length [mm]: 440 mm
- Top tube length [mm]: 595 mm
- Wheelbase [mm]: 1133 mm
Brake system
- Brake Front Brand: Tektro
- Brake Front Kind: HD-M280, 2 pistons, 180 mm
- Brake Front Mount: Post Mount
- Brake Front Type: Hydraulic Disc brake
- Brake Rear Brand: Tektro
- Brake Rear Kind: HD-M280, 2 pistons, 180 mm
- Brake Rear Mount: Post Mount
- Brake Rear Type: Hydraulic Disc brake
- Brake Lever Brand: Tektro
- Brake Lever Kind: HD-M280-BL
- Brake Rotor Brand: Tektro
- Brake Rotor Kind: TR180-35 180 mm, Centerlock
Drivetrain
- Bottom Bracket Brand: Thun
- Bottom Bracket Kind: PASO-ML 68-73
- Bottom Bracket Type: BSA
- Cassette Brand: Shimano
- Cassette Kind: Tourney CS-HG200-7, HG
- Cassette Teeth: 12-32T
- Chain Brand: KMC
- Chain Kind: Z51 8s
- Crank Arm length: 170
- Crankset Brand: Shimano
- Crankset Kind: Tourney FC-TY301
- Crankset Teeth: 42-34-24T
- Crankset Type: triple
- Derailleur Front Brand: Shimano
- Derailleur Front Kind: Tourney FD-TY600-L6 3x6/7s, Top Swing
- Derailleur Hanger Brand: Ghost
- Derailleur Hanger Kind: GRH-21bl black + Screws FRHG0004
- Derailleur Rear Brand: Shimano
- Derailleur Rear Kind: Tourney RD-TY300-SGS 6/7s, Double Servo
- Gear Brand: Shimano
- Gear Type: Derailleur
- Pedal Brand: XLC
- Pedal Inclusive: Yes
- Pedal Kind: Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Shifter Left Brand: Shimano
- Shifter Left Kind: SL-M315-L 3x7s, Rapidfire+
- Shifter Left Type: Triggershift
- Shifter Right Brand: Shimano
- Shifter Right Kind: SL-M315-7R, Rapidfire+
- Shifter Right Type: Triggershift
Frame and more
- Framesize: 44 cm
- Framesize Convection: M
- Max loadable weight (KG): 120 kg
- Front Fork Brand: Suntour
- Front Fork Kind: SF18-XCE28 DS 9mm-Dropout, 1-1/8" 100 mm
- Front Fork Type: Suspension
- Frame Kind: HIGH
- Type kickstand mount: KSA40
- Suspension Type: Hardtail
- Travel Front: 100 mm
Handlebar and Saddle
- Handgrip Brand: XLC
- Grip Kind: GR-S60 Sport Grip
- Handlebar Brand: XLC
- Handlebar Diameter: 31.8 mm
- Handlebar Kind: HB-C32, Dia. 31.8 mm, Rise: 25 mm, backsweep 15°
- Handlebar Material: Aluminium
- Handlebar Rise: 25
- Handlebar Type: Riser Bar
- Handlebar Width: 740 mm
- Headset Brand: Glory Wheel
- Headset Kind: Strummer Headset, 1SI110 ZS44/ZS44
- Headset Type: Semi-integrated
- Saddle Brand: XLC
- Saddle Kind: SA-S10 143 mm Sport
- Seatpost Brand: XLC
- Seatpost Kind: SP-R30, Dia. 31.6 mm, L: 400 mm
- Seatpost Length: 400 mm
- Seatpost Material: Aluminium
- Seatpost Type: Non Suspension
- Stem Brand: XLC
- Stem Kind: ST-M34, Dia. 31.8 mm, L: 50 mm, +/-7°, A-Head
- Stem Length: 50 mm
Wheels and wheel components
- Hub Front Brand: XLC
- Hub Front Kind: HF-T20, QR 100 mm, 32H, Centerlock
- Hub Rear Brand: XLC
- Hub Rear Kind: HR-T10 QR 135 mm, 32H, Centerlock, HG
- Rim Brand: XLC
- Rim Kind: WR-M19 Disc 25/622 32H 6,5 mm Valve
- Rim Rear Brand: XLC
- Rim Rear Kind: WR-M19 Disc 25/622 32H 6,5 mm Valve
- Spoke Brand: DT Swiss
- Spoke Kind: FACTORY 2.0
- Tyre Brand: XLC
- Tyre Kind: VT-M20 Summit
- Tyre Rear Brand: XLC
- Tyre Rear Kind: VT-M20 Summit
- Tyre Size Etrto: 57-622
- Wheel Size Front: 29
- Wheel Size Rear: 29
