Specification

• Frame: Edge 29" Supreme 5 alloy Disc, internal cable routing
• Fork: SR Suntour XCM-RL-DS 29' 100mm travel
• Rear derailleur: Shimano Altus Shadow RD-M2000, 9s
• Front derailleur: Shimano Altus FD-M2020 (Side swing)
• Crankset: Shimano FC-MT101 36-22T 170mm (XS/S) / 175mm (M/L/XL)
• Bottom bracket: Square 122mm
• Sprocket: Sunrace CSM90 11-36T 9s
• Chain: KMC X9 1/2"x11/128" 9s
• Brakes: Shimano MT200 hydraulic brakes Disc
• Discs: Shimano SMRT10S 160mm front/rear Center Lock
• Shifters / Brake levers: Shimano Altus STEF505 9s
• Headset: FSA NO.10 semi-integrated
• Handlebar: XLC alloy 6061 Top flat, Width: 720mm, Ø: 31.8mm
• Grips: Herrmans Lock-on DD30B 130mm
• Stem: XLC alloy, 6°, Ø: 31.8mm, L: 60mm
• Seatpost: XLC alloy, Ø: 31.6mm, L: 400mm
• Saddle: XLC by DDK
• Front hub: Shimano HBTX505, 32H Center Lock QR
• Rear hub: Shimano HBTX505, 32H Center Lock QR
• Rims: Lapierre Disc, 32H, 29", 21-622
• Tires: Schwalbe, front: Tough Tom 29x2.25 622-57 / rear: Rapid Rob 29x2.25 622-57
• Pedals: Xerama SP-400
• Weight: 14.7 kg *
• Size: S, M, L, XL

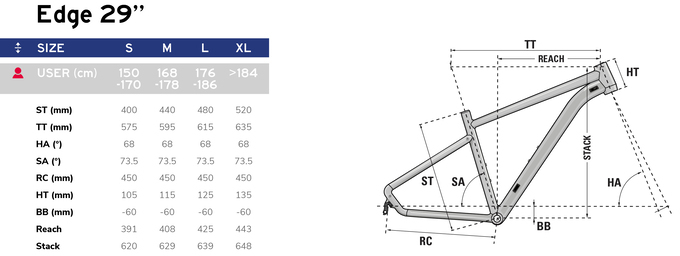

Geometry
